Home All Products (104) SS wire braided Hoses
SS corrugated Hoses

Technical Data


Nominal
 size N.B.

Without braid
 pressure in kg/cm2




With single braid
 pressure in kg/cm2




With double braid
 pressure in kg/cm2





Max working
 (design)




Test

Max working
 (design)

Test

Max working
 (design)

Test


6

4

6

100

150

160

240


10

4

6

90

135

144

216


12

3

4.5

80

120

128

192


16

3

4.5

70

105

112

168


20

2

3

64

96

102

153


25

2

3

50

75

80

120


32

1.5

2.3

40

60

64

96


40

1.5

2.3

30

45

48

72


50

1

1.5

28

42

44

66


65

1

1.5

24

36

38

57


80

1

1.5

18

27

28

42


100

0.8

1.2

16

24

26

39


125

0.6

0.9

12

18

20

30


150

0.6

0.9

10

15

16

24


200

0.5

0.75

8

12

12

18


Note

The above Technical details are subject to change without notice.
We can also supply the above Hoses for higher pressures.
The above values apply only to Braided Hoses and Assemblies at ambient temperature

Flexible Metallic Hoses:
Manufactured with Carbon Steel, S.S. and Brass of type 321, 304, 304L, 316, 316L and flexible tubes of Stainless Steel .

Specifications:

ASSEMBLES AND HOSES

Let us fabricate and helium leak test your hose assembly as a complete package with a gasket and/or an Epsilon Coupler, giving you assurance that your system is leak-free.
Certified Welders ASME B31.3 Section 9
Custom Fittings Available
Metal hose assemblies & custom fittings available
Helium Leak Testing with Mass Spectrometer
For piping installations requiring temps to 1500o, vibration absorption, Chemical resistance and no effusions.
Pump Connectors
Flex lines (flexline) flexible metal hose assemblies
Bellows
Expansion joints
Cryogenic metal hose assemblies
Annular and Helical metal hose assemblies
Tubular and Braided metal hose assemblies
321, 316 Stainless, and specialty metals including Monel and Inconel
Oxygen Service Cleaning available
Custom length hose assemblies from 1/4

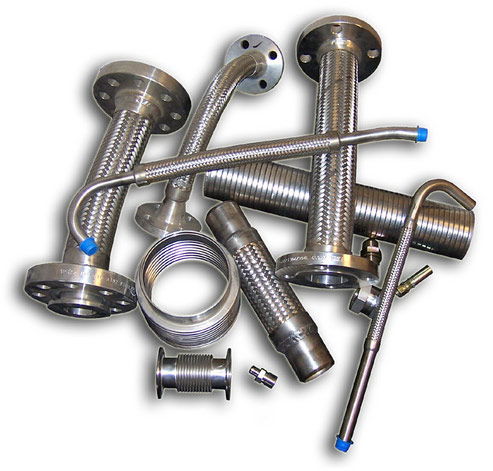

SS wire braided Hoses

assured purchase
True
Buy Now
Add to Cart
Need More Info
SS corrugated Hoses Technical Data Nominal size N.B. Without braid pressure in kg/cm2 With single braid pressure in kg/cm2 With double braid pressure in kg/cm2 Max working (design) Test Max working (design) Test Max working (design) Test 6 4 6 100 150 160 240 10 4 6 90 135 144 216 12 3 4.5 80 120 128 192 16 3 4.5 70 105 112 168 20 2 3 64 96 102 153 25 2 3 50 75 80 120 32 1.5 2.3 40 60 64 96 40 1.5 2.3 30 45 48 72 50 1 1.5 28 42 44 66 65 1 1.5 24 36 38 57 80 1 1.5 18 27 28 42 100 0.8 1.2 16 24 26 39 125 0.6 0.9 12 18 20 30 150 0.6 0.9 10 15 16 24 200 0.5 0.75 8 12 12 18 Note The above Technical details are subject to change without notice. We can also supply the above Hoses for higher pressures. The above values apply only to Braided Hoses and Assemblies at ambient temperature Flexible Metallic Hoses: Manufactured with Carbon Steel, S.S. and Brass of type 321, 304, 304L, 316, 316L and flexible tubes of Stainless Steel . Specifications: ASSEMBLES AND HOSES Let us fabricate and helium leak test your hose assembly as a complete package with a gasket and/or an Epsilon Coupler, giving you assurance that your system is leak-free. Certified Welders ASME B31.3 Section 9 Custom Fittings Available Metal hose assemblies & custom fittings available Helium Leak Testing with Mass Spectrometer For piping installations requiring temps to 1500o, vibration absorption, Chemical resistance and no effusions. Pump Connectors Flex lines (flexline) flexible metal hose assemblies Bellows Expansion joints Cryogenic metal hose assemblies Annular and Helical metal hose assemblies Tubular and Braided metal hose assemblies 321, 316 Stainless, and specialty metals including Monel and Inconel Oxygen Service Cleaning available Custom length hose assemblies from 1/4" ID - 14" ID Stocking fabricator/manufacturer Sizes: 1/4'' to 12''
