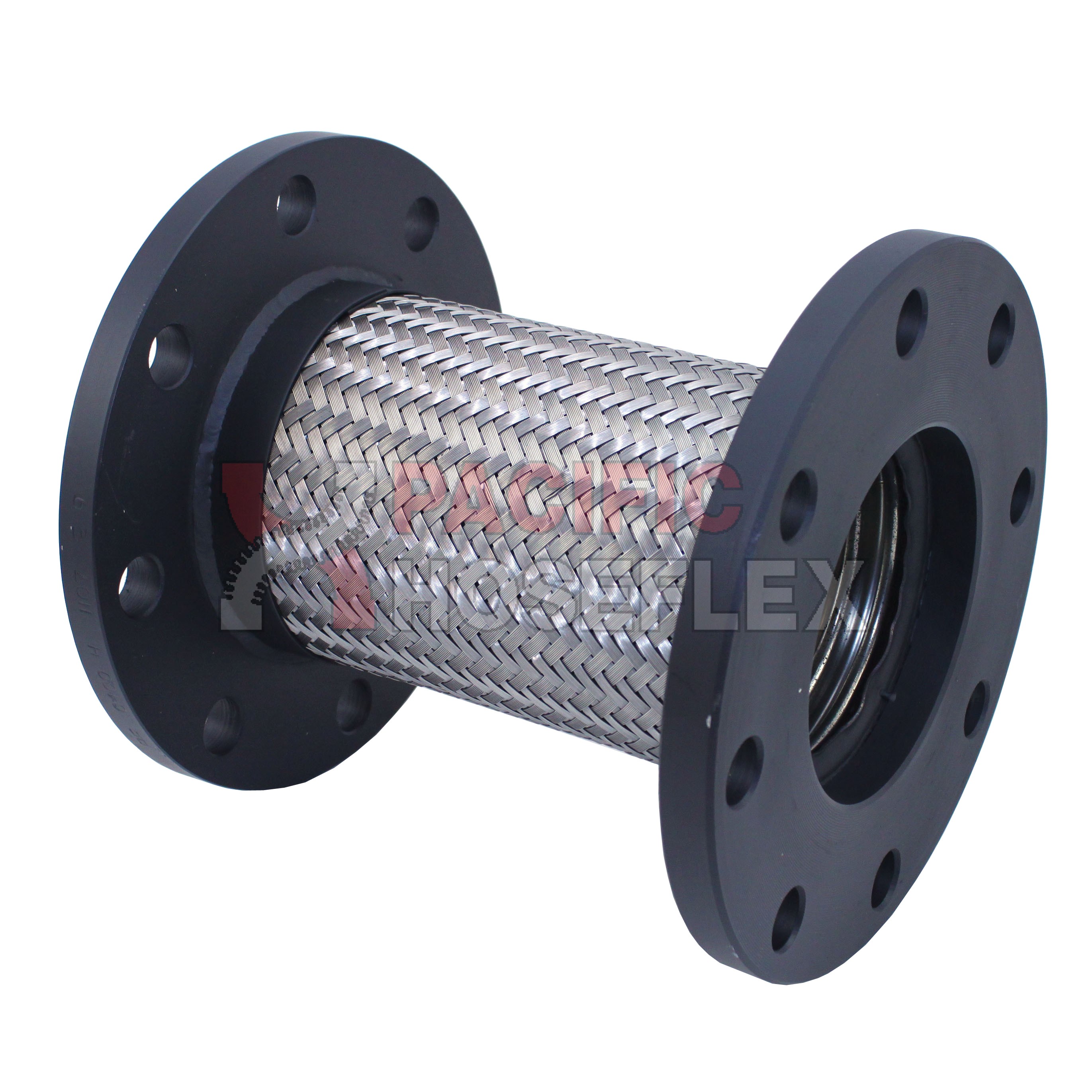

SS Braided Expansion Bellows Braided expansion joints are constructed with a corrugated inner bellows and braided cover that helps increasing the pressure resistance rating and provides end limitations that the need for additional control assemblies.They are assembled using annularly corrugated stainless steel bellows and high strength stainless steel braiding. They are designed for optimum performance in vibration applications and to reduce vibration in mechanical piping systems. Advantages of Using Braided Expansion Joints: • They prevent damage to pumps result of the piping stress. • They absorb vibration and noise in pump connections. • They are installed easily and prevent the possible pump failures. • They have a compact design that reduces the waste of space. • The bellows and the braiding are manufactured with stainless steel material • To provide required piping flexibility to the systems in order to maintain proper operating conditions. • To protect equipment from stress due to misalignment. DESIGN Structure Bellow Material: Stainless Steel AISI 321 (opt.304, 316L, 316TI, 309) Braiding Material: Stainless Steel AISI 304 Connection Types: Fixed and Floating Flanged and Welded End Flange Material: Carbon Steel St.37.2 as standard, the material can be customised on request Operation Conditions Operating Temperature: -80°C/+600°C Operating Pressure: PN 16/25 Nominal Diameters: DN25 (1”) - DN250 (10”) Global Transmission No. 37, Strand Road, I Floor Kolkata, West Bengal - 700 001, India Email : info@globaltransmission.net Fone: 98301-61971 www.globaltransmission.net www.globaltransmission.in www.globaltransmissionhoses.com www.globaltransmissionhoses.in
  • 2019-04-12T11:29:55

Other Updates

update image
Next
Latest
HYDRAULIC HOSES & ASSEMBLIES Rubber hydraulic hoses are used for power transmission and control in hydraulic systems. Designed for hydraulic oil, working temperatures from -40 to +100°C and working pressure till 420 bar (42 Mpa). Due to its construction, hydraulic hoses can be divided into following categories: hoses with textile braid (one or two layers). hose with one or two layers of steel wire braid (one, two and three layers). hoses with spiral wire braid (four or six layers). Hydraulic hoses are manufactured in imperial sizes and standardised. The most popular standards defining requirements for hoses are as follows: American SAE, German DIN, International ISO and European EN. Apart from standardised hoses (according to above mentioned norms) our offer includes hoses with increased flexibility, higher working temperature, increased abrasion resistance of external layer or better chemical resistance. For a proper choice of hydraulic hose to a particular application below mentioned aspects has to be taken into account: working pressure and working conditions (static/dynamic), medium and ambient temperature. Hydraulic hoses designed for mining applications must fulfil additional requirements connected with explosives and fire conditions present in mines. Hydraulic hoses assembled with the use of fittings crimped on crimping machines. Global Transmission No. 37, Strand Road, I Floor Kolkata, West Bengal - 700 001, India Email : info@globaltransmission.net Fone: 98301-61971 www.globaltransmission.net www.globaltransmission.in www.globaltransmissionhoses.com www.globaltransmissionhoses.in
